Motion Sensors

All motion sensors are sold with factory packaging, most are in stock or available on request, but the main thing is that we work officially with all suppliers, and after payment you will receive a guarantee from the manufacturer. In South Africa, you can buy a motion sensor in every third store, but it is cheaper to order it online with delivery in South Africa.

Showing all 5 results

Motion Sensor Buyers Guide

A motion detector equipped with an infrared or microwave sensor is built into the case; upon operation, it connects the contacts of the lighting circuit. The difference between these specifics is only in principle.

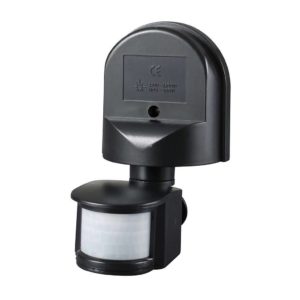

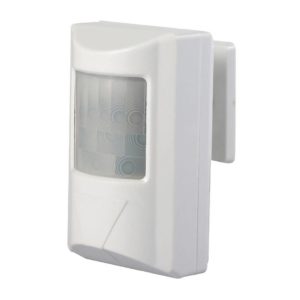

Infrared Sensors

An infrared motion sensor responds to the temperature difference between a moving object and the surrounding area. The disadvantage is that it can falsely trigger heaters. It is also easy to fool it if you hide behind a screen that does not transmit heat. The IR sensor is well suited for home lighting, where a 100% probability of response is unnecessary. It is safe, easy to configure, and cheap.

Keep in mind that it will not react to movement if the person is too slow or running. Most models work only if the object moves at a speed of 0.5-1.5 m / s (1.8 – 5.4 km / h), equivalent to walking speed.

For rooms with artificial heat sources, a microwave is better. It generates high-frequency electromagnetic waves that return after reflection from objects in range. When a person or a car moves, the reflected wavelength (Doppler effect) changes and the electronic mechanism is triggered – the reaction to the movement will be the inclusion of lighting.

This principle is characterized by speed and high sensitivity, so microwaves pass through thin glass walls, plywood or drywall. The accuracy of the operation is independent of temperature.

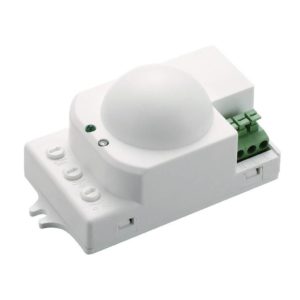

Microwave Motion Sensors

Despite the prejudice about the harmfulness of microwave waves, a microwave sensor for lighting in a residential building is used very often. It is absolutely safe and does not affect health in any way. The average power of its electromagnetic field is only 10 mW, which is 100 times less than that of a mobile phone.

If you do not need high sensitivity, then it is better to buy an infrared motion sensor – it is cheaper. The price of a microwave with the same characteristics is several times higher, but sometimes it is better to overpay.

When choosing, you can not prioritise the lowest cost of the sensor; for example, the price of the same infrared reflects flexibility in settings, sensitivity and build quality, and hence the service life. Sometimes it’s better to overpay so that in a month you do not have to buy again. In fact, even if you buy the cheapest motion sensor in South Africa, you can automatically turn on the light. The only question is how effective it will be and how long it will work.

Automatic lighting control and more

A motion sensor is often used for lighting on the street, in the corridor or the garage, since in these places, it is important that the lighting turns on automatically, for example, when a car drives up, or someone enters the entrance.

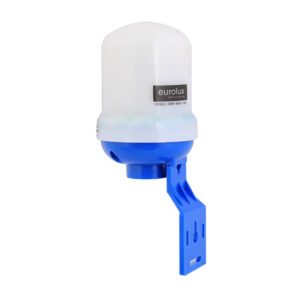

It can be configured as a twilight relay for external use so that the lighting turns on only when it gets dark outside. Placement is best planned away from other light sources. It is important to adjust the settings correctly. Otherwise, it will not react to the movement as it should, which will bring only additional trouble instead of convenience.

The Best Place To Mount Your Sensor

The stairwell entrance can be used as a staircase relay – this is both convenient and energy-saving. If dozens of lamps will work all night, the common house meter “wraps” a decent number of kilowatt-hours at the end of the month. The light turns off automatically after the expiration of the set delay. Even budget models support a tuning range from 10sec to 5-8min, which is more than enough for this purpose.

The price of a motion sensor depends not only on the accuracy of detection of a moving object but also on the flexibility of settings. Sometimes it’s better to overpay for an extended range of settings or sensitivity adjustment to have no false positives on animals.

When choosing, consider how large the lighting system is; for the only energy-saving lamp near the entrance or in a small room, there is no point in overpaying for unnecessary characteristics, and then also conduct separate wiring. It is easier and cheaper to take a cartridge with a motion sensor. It is installed in a few seconds and immediately ready for use.

It is optimally suitable if only recently a repair has been made. Which is better – drill the ceiling and walls or buy motion sensors with a base, instead of mortise? The only thing that most of them are not suitable for installation outside the building due to the vulnerability of the structure to climatic effects.

What is important to consider when installing outdoors

Sensors for lighting on the street are waterproof, therefore more voluminous. The case is made of thick hardened plastic and is tightly closed from rain, snow and dew. In addition to moisture, severe frost can disrupt performance, so outdoor sensors are designed for use at low temperatures, most of them work well even at -25 ° C.

They are often used for LED floodlights; such a lighting system is universal and can be used both to illuminate the entrance to the home garage and at the guarded object. The technical specifications indicate the installation height. You can’t just buy motion sensors and place them anywhere. The declared range must always exceed the installation height. Otherwise, the sensitivity will decrease.

When placed outside, a wide area of ​​visibility is important; it is better to take motion sensors with a viewing angle of 180 degrees or more for lighting. But if inappropriate movement is allowed nearby (people passing by), there may be false positives. Using a rotating head, you can direct the beam to the desired area.

You need to select the characteristics based on the conditions of use. You can even buy a street lamp. Only a special street motion sensor is not screwed into the lamp holder. You will have to fix it with screws or screws, and on the reinforced concrete support, you will have to attach a holding plate.

Features of automatic lighting in the apartment

Turning on the light when driving is not always convenient for a living room, where people can stay in the same place for a long time, for example, in the bathroom, in the kitchen or just lying on the couch.

Turning off the light when the delay time is over is not always a good option. For example, in the bathroom, you can take a bath for half an hour or brush your teeth in 3 minutes. It is difficult to choose such a delay so that there is always enough time and electricity is not wasted.

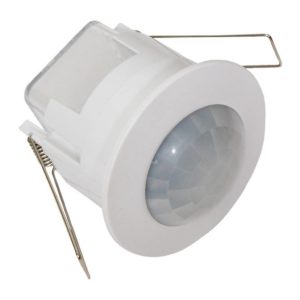

Presence sensors built into the ceiling with a maximum viewing angle of 360 degrees will help avoid such inconvenience. Even with a range of 2-4 meters, their visibility range easily covers a room of 20-30 m². But this is not their main advantage.

Unlike a motion sensor, the ceiling presence sensor is only infrared and is designed to detect a heat source. For example, in a room with a + 20 ° C temperature, it will easily notice even a motionless person with + 36.6 ° C.

It can be used not only for lighting but also for protection against burglars during the absence. The only negative is that in the absence of electricity, it will not work if there is a risk that the attackers will de-energize the network, then only standalone motion sensors.

In apartments, decorative lighting has recently become popular. It is used more for beauty than practical use because it is often too lazy to turn it on manually. It is better to put mini sensors for lighting – small, no more than a matchbox, easily installed in decorative elements, do not spoil the appearance. Since they are produced specifically for LED strip light, their small dimensions facilitate accurate installation in some  LED profiles.
